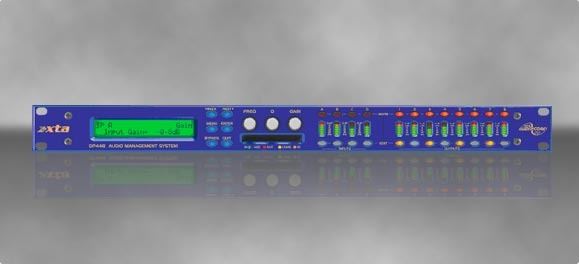

Product Overview
Based on the world-renowned DP226, the XTA 4 series signal processing platforms use high-performance 24bit converters on all inputs and outputs, running at 96kHz to give a bandwidth of over 30kHz and a dynamic range in excess of 116dB. Each input channel has a 28-band graphic equalizer, in addition to 8 bands of fully parametric equalization. Each output path features up to 9 parametric sections, in addition to the crossover filters which themselves now offer slopes from 6dB/Octave up to 48dB/Octave.

Industry standard AES/EBU interfaces are built-in which allow the units to work with both digital inputs, and feed digital output streams. Sample rate converters are included on the inputs, allowing it to accept streams from 32kHz up to 192kHz (output sample rate is fixed 96kHz).The added convenience of the input routing matrix, each of the AES output streams can be any combination of inputs, allowing complete flexibility.

Specifications:
Inputs Electronically balanced (transformers optional)
AES/EBU (selectable) fitted as standard to all Series 4 units
Impedance >10k ohms
CMRR >65dB 50Hz - 10kHz
Outputs All electronically balanced (transformers optional)
AES/EBU fitted as standard to all Series 4 units
Source Imp 116dB 20Hz -20kHz. Unwtd
Distortion < 0.001% @ 1kHz, +10dBm
Maximum Delay 650 mS. (increment 0.325 µs steps)
Output gain Adjustable +15dB to -40dB in 0.1 dB steps and mute
Equalization
Filters Parametrics - 8 Per input / 9 per output
Additional filters 28-band graphic on each input
Each parametric can be switched to Bandpass, Allpass, Notch, VariQ, Shelf and Elliptical response
Phase filtering - 2 degree steps on each input and output
Crossover Filters
Bessel / Butterworth 6/12/18/24/48dB per octave
Linkwitz-Riley 12/24/48dB per octave
Limiter
Threshold +22dBu to -10dBu
Attack time 0.3 to 90 milliseconds
Release time 4, 8, 16 or 32 times the attack time
Clip/D-max Limiter Look-ahead attack time,Fast, Medium or Slow release times
Connectors
Inputs 3 pin female XLR
Outputs 3 pin male XLR
RS485 In/Out XLRs
RS232 9 Pin (Female) D Connector
Power
Power 3 pin IEC
Power 60VAC - 240VAC
Consumption < 40 watts
Weight 3.5kg. Net (5kg. Shipping)
Size 1.75"(1U) x 19" x 12" (44 x 482 x 305mm) excluding connectors
PER THE SELLER : ALL UNITS IN EXCELLENT OUTER & INNER
WORKING CONDITION.
BID IS FOR ONE, UNIT. OTHER AVAILABLE IN NEXT SALES LOTS
ALL THE SAME, CHECK OUT AS THEY COME OUT OF THE WAREHOUSE
