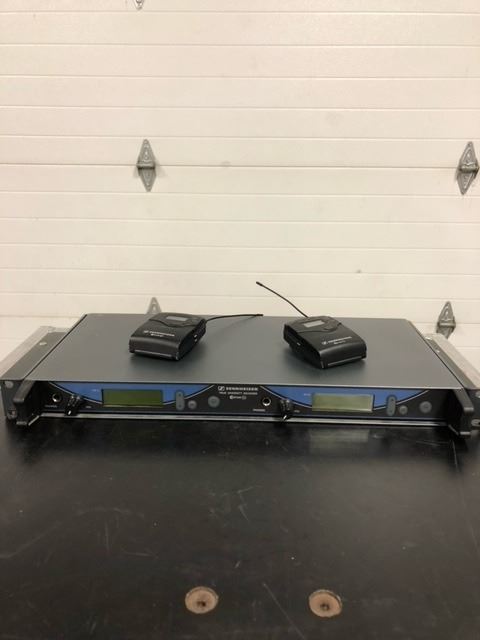

S/3 SENNHEISER UNIT W 2 X RECEIVERS

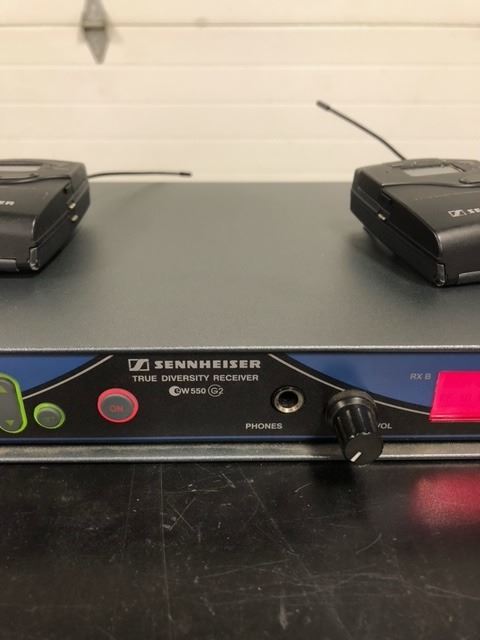

SENNHEISER TRUE DIVERSITY

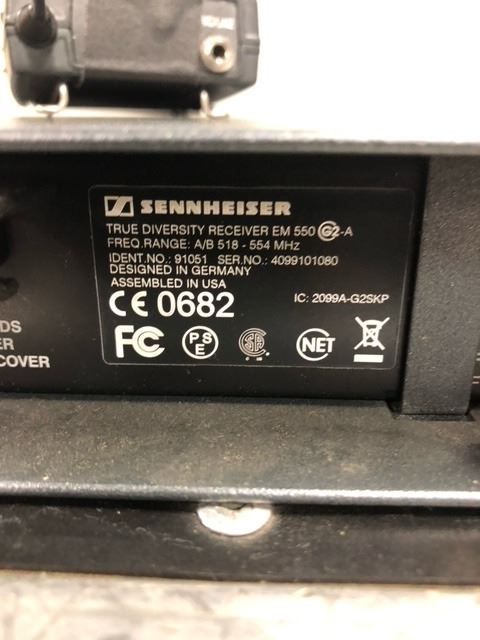

RECEIVER EM550

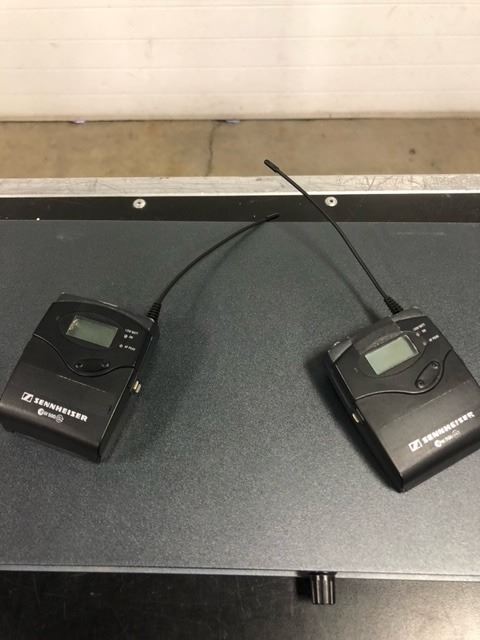

W 2 X WIRELESS HAND UNITS.
BID IS FOR THE SET OF 3 (S/3)
The EM 550 G2 twin receiver consists of two complete true diversity receivers in a single 19” rack housing. The two receivers can be operated independently from each other. The EM 550 G2 has an integrated antenna splitter, enabling you to daisy-chain up to eight twin receivers. The EM 550 G2 can be combined with transmitters of the ew 500 G2 series to make high-quality state-of-the-art RF transmission systems for professional applications. The transmitters and the twin receiver have a high level of operational reliability and are extremely user-friendly.

Specifications:
RF characteristics
Modulation: wideband FM
Frequency ranges: 518–554, 626–662, 740–776, 786–822, 830–866 MHz
Receiving frequencies:
8 channel banks with up to 20 factory-preset channels each
1 channel bank with up to 20 freely selectable channels(1,440 frequencies, tunable in steps of 25 kHz)
Switching bandwidth: 36 MHz
Nominal/peak deviation: ± 24 kHz / ± 48 kHz
Frequency stability: = ± 15 ppm
Receiver principle: true diversity
Sensitivity (with HDX, peak deviation): typ. 1.5 µV at 52 dBArms S/N ratio
Adjacent channel rejection: = 70 dB
Intermodulation attenuation: = 70 dB
Blocking: = 80 dB
Squelch:
4 steps: Off
Low: 5 dBµV
Mid: 15 dBµV
High: 25 dBµV
Pilot tone squelch: can be switched off
Antenna inputs: 2 BNC sockets (50 O)
Cascading outputs:
2 BNC sockets (50 O)
gain: 0 dB ±2 dB (related to antenna inputs)
AF characteristics
Noise reduction system: Sennheiser HDX
EQ presets (switchable, effect the line and monitor outputs):
Preset 1: “Flat“
AF frequency: response 40–18,000 Hz
Preset 2: “Low Cut“
Cut: approx. - 3 dB at 200 Hz
Preset 3: “HiBoost“
Boost: approx. + 6 dB at 10,000 Hz
Preset 4: “Low Cut & Hi Boost“
Cut: approx. - 3 dB at 200 Hz
Boost: approx. + 6 dB at 10,000 Hz
S/N ratio (at 1 mV and peak deviation): = 115 dB(A) (AF OUT)
THD (at nominal deviation and 1 kHz): = 0.9 %
AF output voltage (at peak deviation 1 kHzAF): +18 dBu to –22 dBu, adjustable in steps of 2 dB(transformer balanced)
AF outputs: 2 XLR-3M sockets
Overall unit
Temperature range: – 10 °C to + 55 °C
Power supply: 100–240 V AC, 50/60 Hz
Power consumption: max. 0.4 A
Mains connector: 3-pin; protection class I
Booster supply voltage: 11 V DC, cannot be switched off
Max. booster current: = 150 mA (limited per antenna socket)
Power consumption: 40 VA
Dimensions [mm]: 436 x 215 x 43
Weight: approx. 3,500 g
